A few examples of projects that have been designed by Scientec.

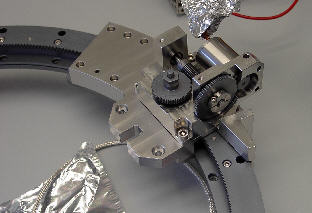

Carriage of the X-ray monitor with gearbox. Used at 10-9 mbar. Complex substrate holder including tools for mounting and demounting.
Play free, pre-loaded bea ring assembly for substrate shaft with play free kinematic height translation stage. Used at 10-9 mbar. Detectorunit for two photodiodes with steppermotor driven filterwheel.

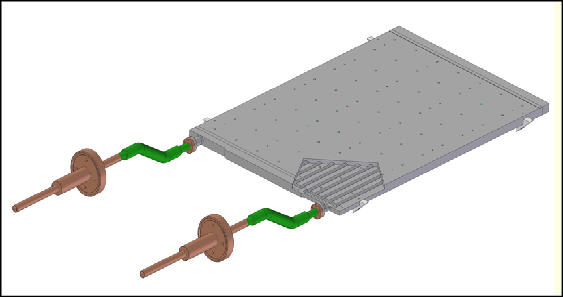

“Sink plate” to test space instrument subassemblies at temp cycles under vacuum conditions. The construction features transition of the stainl ess steel connections to the flat aluminium plate. Cooling/heating by flowing liquid nitrogen and warm water.
